詳細介紹 / Details

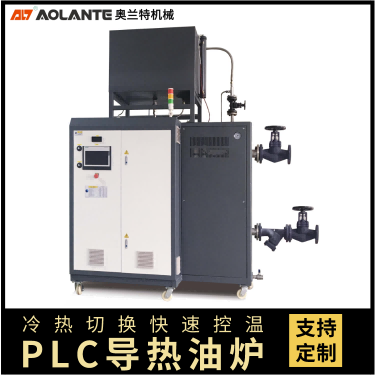

反應釜高溫油溫機油溫機是以導熱油作為媒介的模溫機，也可以稱作油加熱器、油溫加熱器、油循環控溫機。
特 點:Features
管路防爆裝置
Explosion-proof equipment for pipelines
吹氣回油功能
Air blowing and return oil return function
回油溫度顯示表
Thermometer for return oil
開機自動排氣功能
Automatic air-exhausting function after startup
加熱功率切換功能
Switchover of heating power
負壓系統運轉(選購)
Negative-pressure system (optional)
RS485通訊功能，實現自動化管理(選購)
RS485 communication function for automated management (optional)
即時冷卻關機功能(選購)
Instant cooling return oil shut-down function
隔離式電器控制箱，延長電器使用年限
Isolated electric box for longer services lives of electric appliances
熱油BY-PASS泄壓回路
BY-PASS pressure release loop for hot oil
多點溫度控制機組可訂作
Customizable multi-point temperature control unit
油泵馬力和加熱功率可訂作
Customizable horsepower and heating power of oil pump
電器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
溫度控制范圍: 進水溫+25℃→300℃
Range of temperature control: +25℃→450℃ for incoming water
304不銹鋼一體管路,減少管阻及銹垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用進口微電腦或(選購)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保護完善,故障顯示, 維修.保養無需專業人員
Perfect safety protection, fault display, easy repair and maintenance even free of professionals
應用范圍：輥輪加溫、平板硫化機控溫、反應釜控溫、復合機控溫、射出成型模具控溫、捏合機加溫、鋅鋁合金壓鑄、鎂合金射出成型。
|
模型Model |
單位UNIT |
TOB-20 |
TOB-30 |
TOB-50 |
TOB-75 |
TOB-100 |
TOB-150 |
|
|
溫控范圍 Control range |
℃ |
300℃ |
||||||
|
溫控精度 Temp.control accuracy |
℃ |
PID±1℃ |
||||||
|
電源 Power supply |
|
AC 3φ380V50HZ（or other)或其它 |
||||||
|
傳熱媒體 Heat.transfer medium |
|
導熱油CEAT TRANSFER OIL |
||||||
|
冷卻方式 Cooling method |
|
間接冷卻INDIRECT C00LING |
||||||
|
加熱能量Heating capacity |
KW |
18/24 |
24/30 |
36/50 |
60/70 |
80/100 |
110/150 |
|
|
泵浦馬力（功率）Horsepower of Pump |
HP/KW |
2/1.5 |
3/2.25 |
5/3.75 |
7.5/5.6 |
10/7.5 |
15/11 |
|
|
泵浦工作流量 Working flow of pump |
L/MIN |
50 |
180 |
250 |
300 |
500 |
750 |
|
|
泵浦工作壓力Working pressure of pump |
KG/C㎡ |
2.5 |
2.8 |
3.2 |
3.8 |
4.9 |
4.0 |
|
|
大電力消耗Maximum power consumption |
KW |
19/26 |
26/27 |
29/50 |
66/68 |
72/100 |
106/132 |
|
|
警報功能 Alarm function |
|
缺相/缺油/超溫/過載/反轉 |
||||||
|
冷卻水配管Cooing water pipework |
INCH |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
|
循環油配管Circulation oil pipe |
INCH |
3/8x2 |
3/8x4 |
3/8x4 |
3/8x4 |
3/4x4 |
(3/8x4)x2 |
|
|
外型尺寸 LxWxH |
MM |
1050x420x960 |
1050x420x960 |
1560x580x1310 |
2000x600x1600 |
2000x600x1600 |
2000x600x1600 |
|
|
重量 Weighht |
KG |
/ |
/ |
/ |
/ |
/ |
/ |
|
